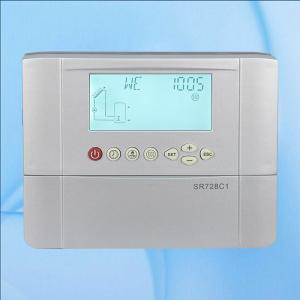

SR728C1 Intelligent Solar Water Heater Controller for Separated Pressurized Solar System
Main Technical data:
Dmension: 191mm x140mm x40mm
Power supply:200V-240V AC or 100V-130V AC50-60Hz. .
Power consumption: < 3W
Accuracy of temperature measuring: ± 2oC
Range of collector temperature measuring: -10oC ~200oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 3 pumps possible to be connected power of each pump < 200W .
Inputs: 5sensors
2pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)
3pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)
Outputs:3 relays for circulation pumps or 3-way electromagnetic valve
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP40.
Introduction:
Suitable for separated pressurized solar system
Max.number of collectors:2
Max.number of storage tanks:2
Max.number of relays:3
Max.number of sensors:5
Max.number of application system:10
Main Functions:
Timing heating
Temperature difference control 2*ΔT
Collector emergency shutdown
Collector cooling function
Collector low temperature protection
Collector frost protection
Tank re-cooling function
Maximum temperature of tank ( 2*storage tanks)
Maximum turnoff temperature
(for solid fuel boiler return heating heat transferring between tanks)
Minimum turnon temperature
(for solid fuel boiler return heating heating transferring between tanks)
Anti-Legionella function
Temperature controlled hot water circulation pump
RPM speed controlling (1*semiconductor)
Thermal energy measuring
Priority logic of multiple-tanks(2*storage tanks)
High temperature by-pass function(Collector cooling down)
Manual Control( for 5 outputs:R1...R4H1)
Password setting
Recovery to factory setting
Holiday fucntion
Manual Heating
Temperature query function
Memory Protection
Screen protection
Trouble shooting
Trouble protection
Trouble checking
TECHNICAL DATA
Dmension: 191mm x140mm x40mm
Power supply:200V-240V AC or 100V-130V AC50-60Hz. .
Power consumption: < 3W
Accuracy of temperature measuring: ± 2oC
Range of collector temperature measuring: -10oC ~200oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 5 pumps possible to be connected power of each pump < 200W .
Inputs: 6 sensors
2pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)
4pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)
Outputs:5 relays for circulation pumps or 3-way electromagnetic valve
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP40.
Working Principle:
This type use all-glasses evacuated tubes as the solar collector for absorbing sun energy and transferring
it into heat energy.
As the different densities of hot water and cold water, the hot water flows automatically upwards while the cold water flows down.
The water flowing cycle is created in the tube. And the water in the storage tank is heated from this natural circulation.
The hot water pressure of this non-pressure system is from the gravity, so it should be installed on the roof or at least 3-4 meters higher than hot water tap.
Or you can install a booster pump to get stronger outlet hot water.
Optional Accessories:
1. Booster Pump (adding the hot water out pressure)
2.Temperature Monitor(showing hot water temperature inside the main tank)
3. Electrical Heater (as back-up for cloudy or rainy day)
| Storage Tank |
| Capacity | 100Lt | 150Lt | 200Lt |
| Inner Tank Material | Stainless Steel | Stainless Steel | Stainless Steel |
| Inner Tank Diameter | 360mm | 360mm | 360mm |
| Insulation Material | Polyurethane | Polyurethane | Polyurethane |
| Insulation Thickness | 50mm | 50mm | 50mm |
| Insulation Density | 36kg/m² | 36kg/m² | 36kg/m² |
| Outer Tank Material | Colored Steel | Colored Steel | Colored Steel |
| Outer Tank Diameter | 460mm | 460mm | 460mm |
| Frame |
| Material | Powder-coating Zinc | Powder-coating Zinc | Powder-coating Zinc |
| Collector Tubes |
| Outer Tube Diameter | 58mm | 58mm | 58mm |
| Material | High Borosilicate glass | High Borosilicate glass | High Borosilicate glass |
| Tube NO. | 12 | 15 | 20 |
| Thickness | 2.0-2.2mm | 2.0-2.2mm | 2.0-2.2mm |
| Inner Tube Diameter | 47mm | 47mm | 47mm |
| Material | High Borosilicate glass | High Borosilicate glass | High Borosilicate glass |
| Aperture Area m² | 0.96m²(1.7mx0.047mx12) | 1.2m²(1.7m*0.047m*15) | 1.63m²(1.7m*0.047m*20)
|
System:
